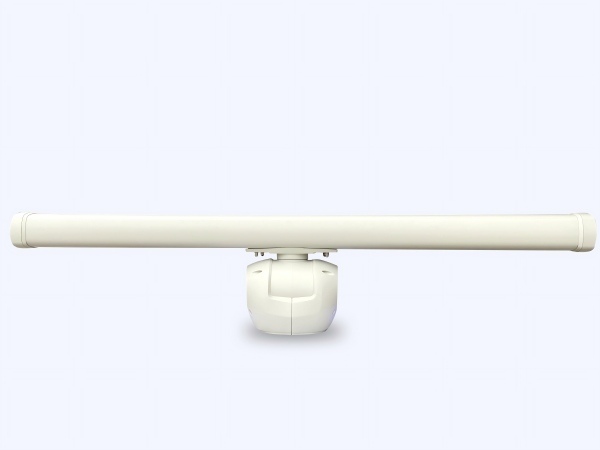

20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object

Name: 20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKXW-SR132
Availability: InStock

Détails du produit:

Nom de marque:	Lei Kan
Numéro de modèle:	LKXW-SR132

Des informations détaillées

Nom de marque:

Lei Kan

Numéro de modèle:

LKXW-SR132

Système de travail:

Implémentation à semi-conducteurs de la technologie de compression d'impulsions (balayage azimut

Portée maximale détectable:

≥ 20km (bateau de pêche ou hors-bord)

Précision:

Portée ≤ 10 m ou 1 %, selon la valeur la plus élevée

Obtenir des informations:

Distance, azimut, vitesse, intensité de réflexion

Mettre en évidence:

High Light

Mettre en évidence:

20KM coastal surveillance radar

solid-state navigation radar

object tracking surveillance radar

Description du produit

Ⅰ. Product Functions and Applications

The radar is capable of detecting both moving and stationary targets at sea. By utilizing the electromagnetic wave reflection characteristics of surface targets and filtering out sea clutter and other interference, the radar processes the reflected signals to obtain accurate information on target range, bearing, speed, and reflection intensity, as well as to track the target's movement trajectory.

Ⅱ. Main Technical Specifications

Item	Performance Parameter
Operating Mode	Solid-state pulse compression (azimuth mechanical scan)
Operating Frequency Band	X-band
Maximum Detection Range	≥ 20 km (for fishing boats or speedboats)
Minimum Detection Range	≤ 100 m
Azimuth Coverage	360°
Beamwidth	Horizontal: 1.2°Elevation: 25°
Range Accuracy	≤ 10 m or 1% of range whichever is greater
Azimuth Accuracy	≤ 1°
Data Update Rate	≥ 0.4 Hz
Power Consumption & Tx Power	Power consumption: ≤ 200 W Transmit power: 25 W ±10% (under any transmit condition) – max 10% duty cycle
Target Capacity	100 targets
Data Interface	RJ45 / 1×100 Mbps Ethernet (UDP protocol)
Operating Environment	Operating temperature: –25°C to +55°C Relative humidity: 93% RH at +40°C Protection rating: IP66 Includes protection against rain dust sand moisture salt mist and mold
Dimensions	Antenna: 2100 × 135 mm Rotator: 324 × 339 × 262 mm Control box: 385 × 230 × 114 mm
Weight	System (after unpacking): ≤ 36 kg

Ⅲ. Project Demonstration
